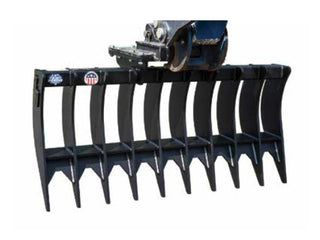

Heavy Duty Excavator Rake | Root & Debris Removal for 6K–15K Excavators

The Blue Diamond® Heavy Duty Excavator Rake is engineered for exceptional performance when you need a clean, debris-free finish. Designed for 6,000–15,000 lb excavators, this rake is essential for land clearing, demolition, and material sorting.

With 1/2" thick steel tines, this attachment rips through soil to expose and remove embedded roots while allowing loose dirt to flow through. 6-1/2" tine spacing and gusseted tine tips ensure strength, durability, and efficient material separation. Ideal for removing rocks, light brush, roots, trash, and other unwanted debris. An 18" x 19" bolt-on top plate allows fast mounting changes between machines, adding versatility to your equipment fleet.

• Available Sizes: 36", 48", and 60" widths
• Excavator Compatibility: Models available for 6K–10K and 10K–15K machines
• 1/2" thick steel plate tines for superior durability
• 6-1/2" tine spacing allows efficient soil flow and debris separation
• Gusseted tine tips for enhanced strength in tough working conditions
• 18" x 19" bolt-on top plate for easy mount interchangeability

Technical Specifications

Compatible With

Fits most major skid steer and compact track loader brands including Bobcat, Case, Caterpillar, John Deere, Kubota, New Holland, Gehl, Mustang, Manitou, Volvo, and others with a standard universal quick attach plate.
